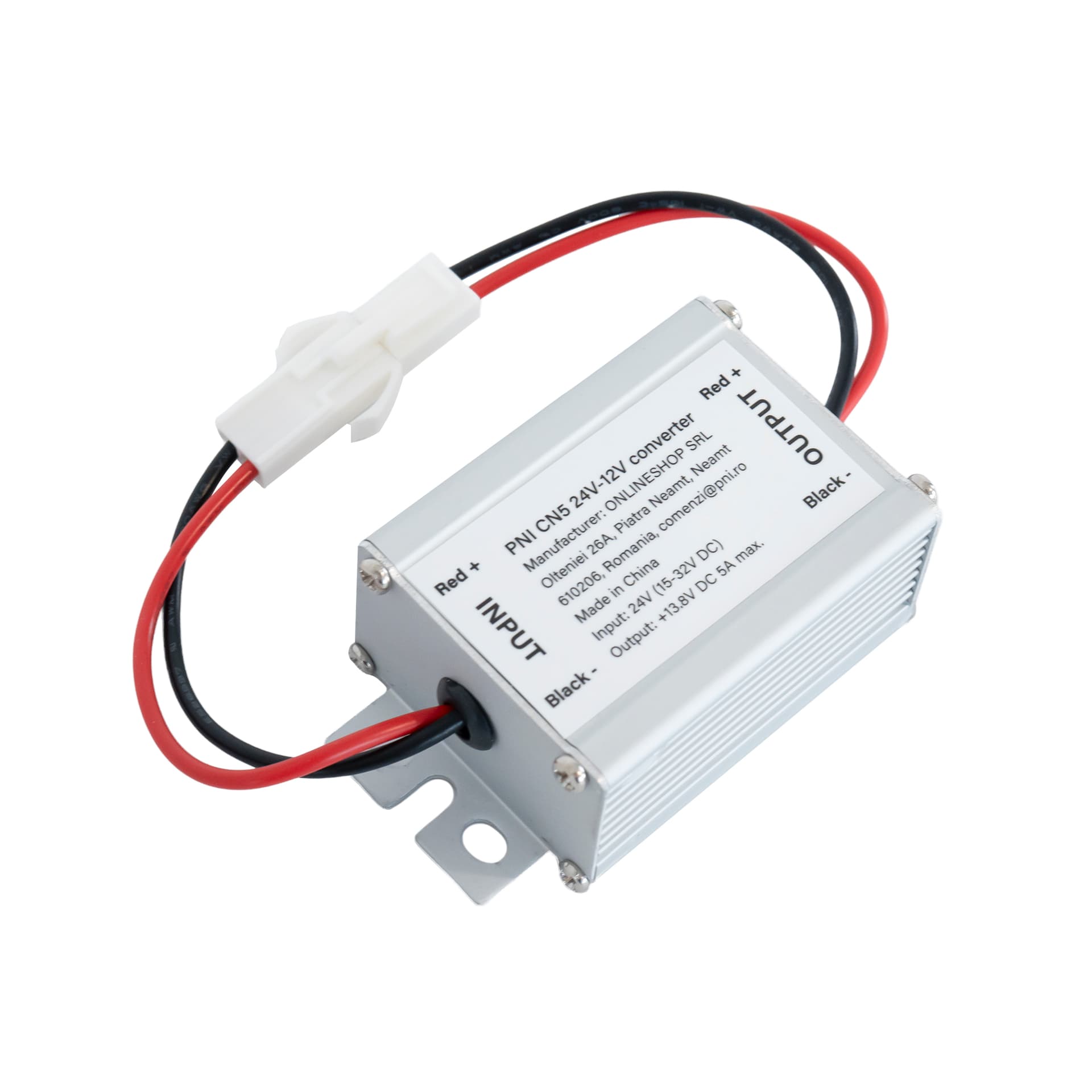

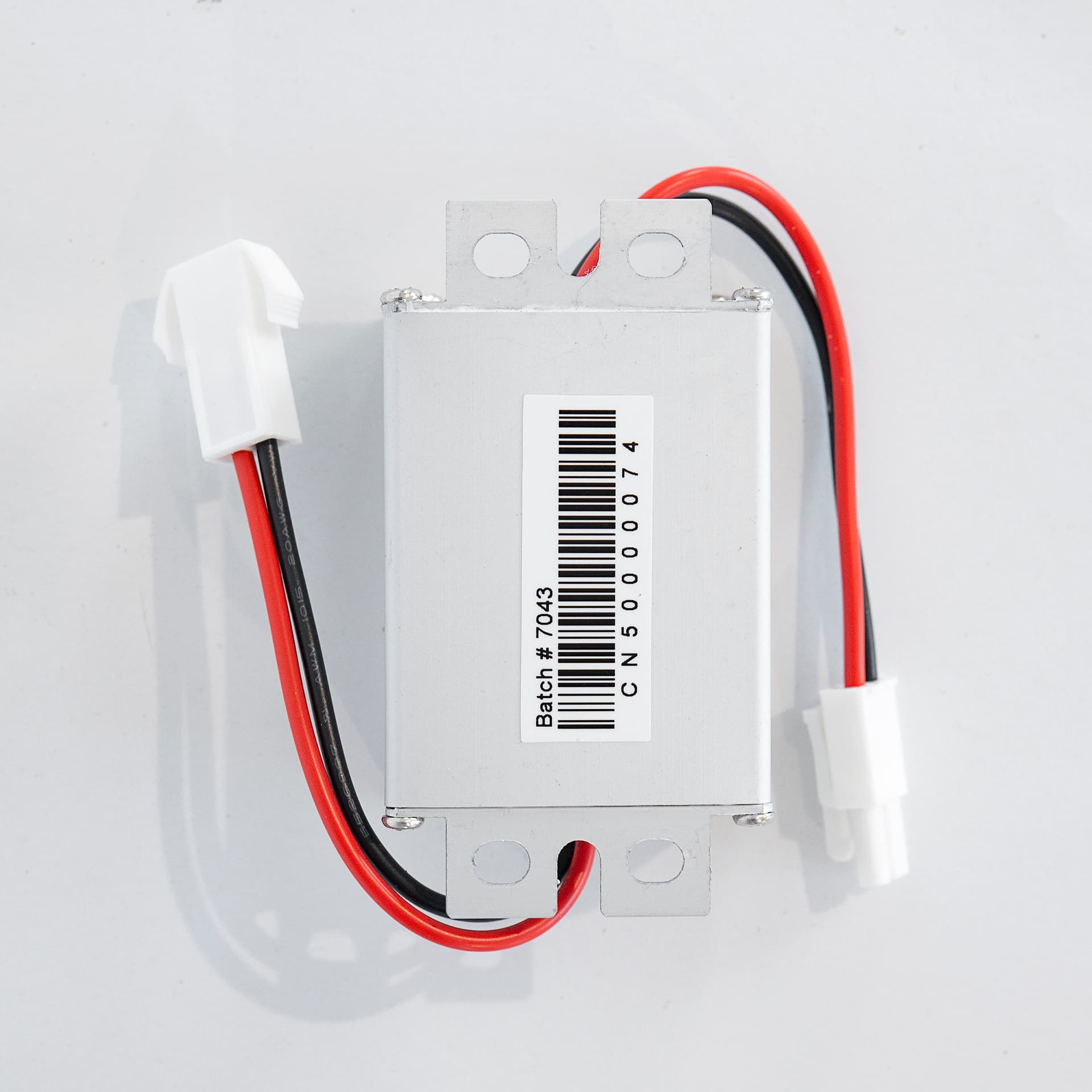

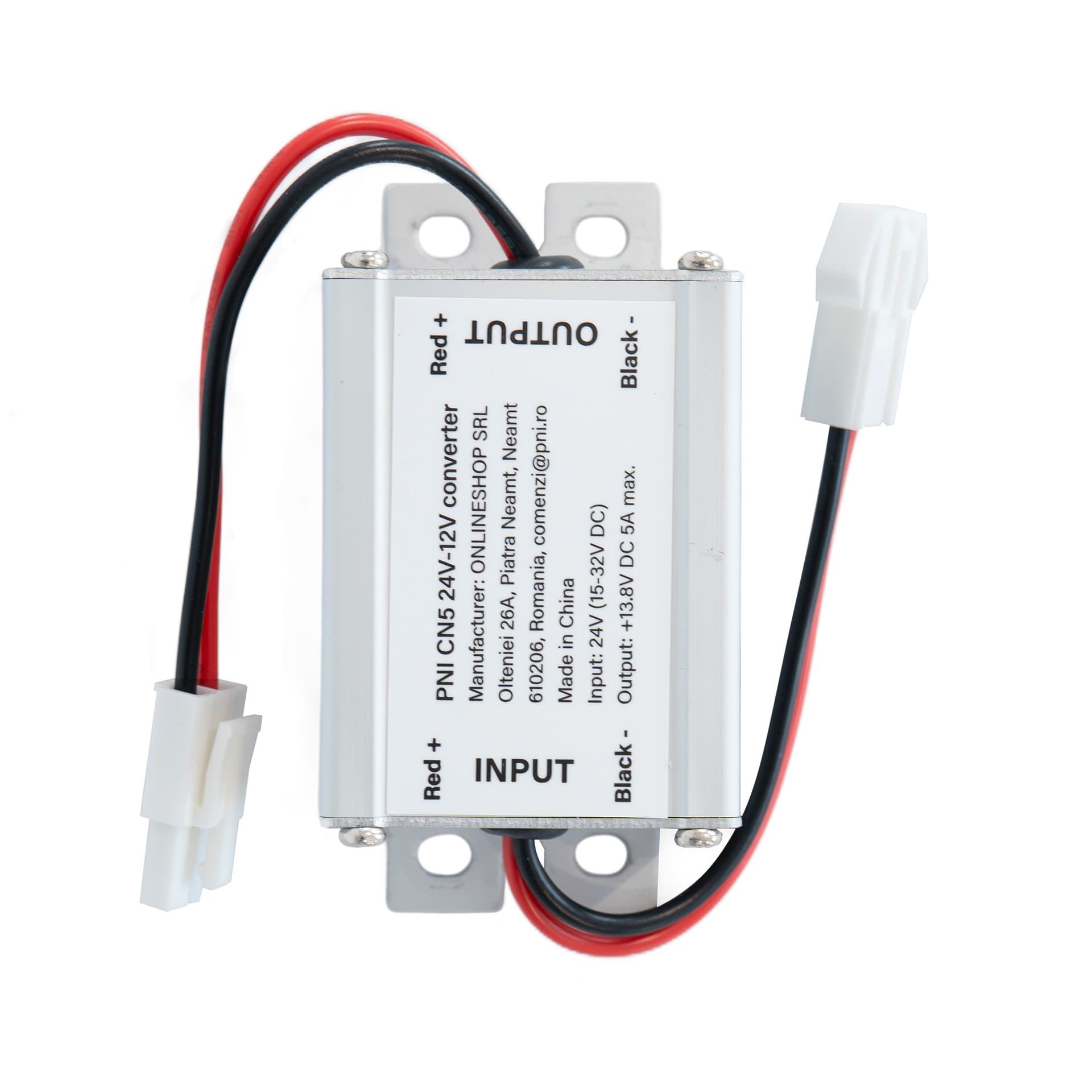

Voltage converter PNI CN5 input 24V output 12V current 5A

Functional features

The PNI CN5 voltage converter is designed to convert a 24 V DC sursă de alimentare into a stable 12 V DC output capable of supplying a continuous current of up to 5 A, which corresponds to a maximum alimentare of approximately 69 W.

The device regulates the output voltage to a nominal value of approximately 13.8 V cu a typical accuracy of ± 3 %, și the ripple și electrical noise level remains below 120 mVp-p, ensuring a clean sursă de alimentare pentru sensitive equipment.

The input voltage rază covers 15-32 V DC, providing flexibility in use, especially in vehicul sursă de alimentare applications or installations cu 24V sources.

Installation, use, și safety precautions

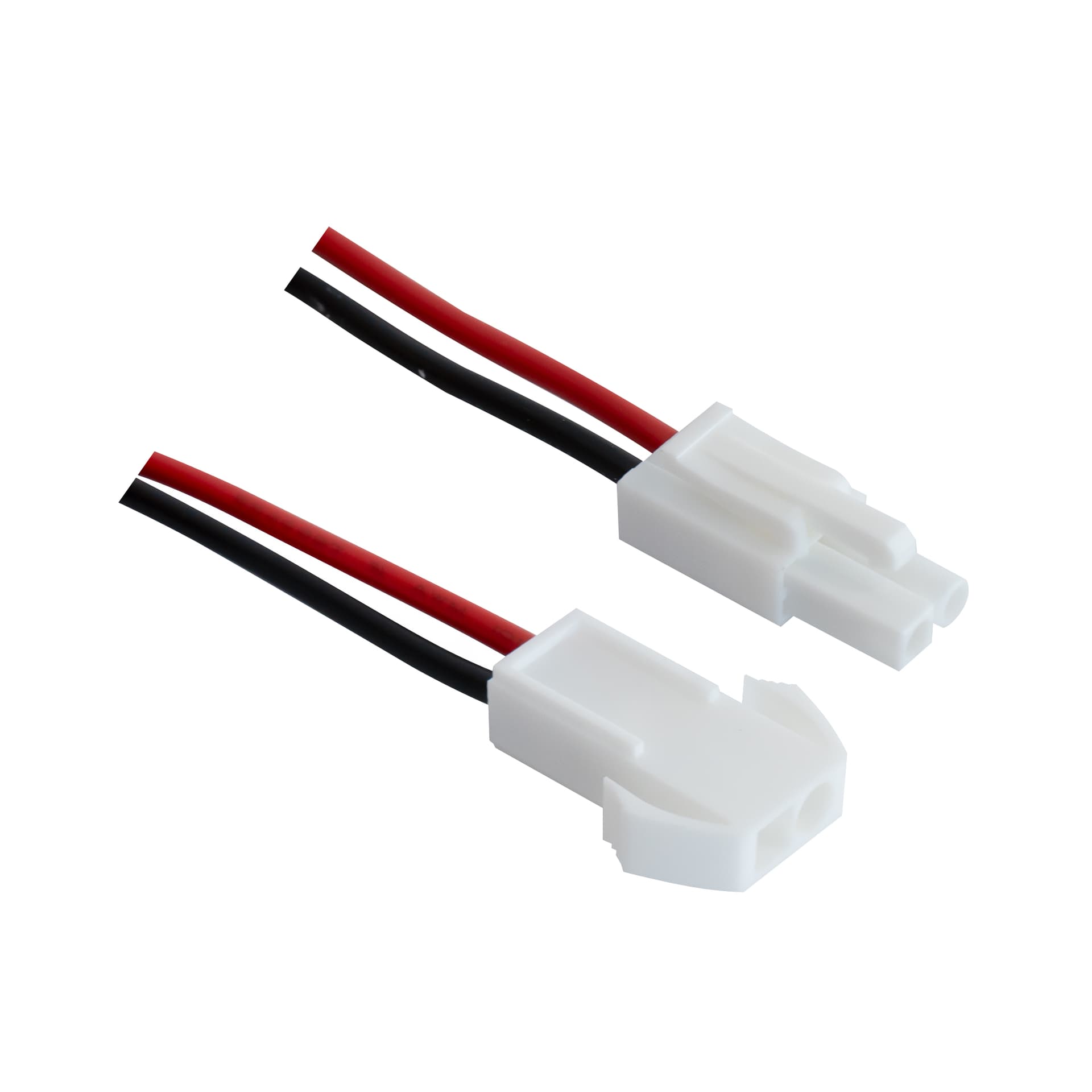

The converter is installed by correctly connecting the input și output terminals, paying particular attention to polarity to avoid damage to the device.

In practice, the 12 V DC output can alimentare compatibil electronic equipment such as PNI Escort HP 6500, HP 6500 PRO, HP 6550, și HP 7120, or other devices that require this voltage, by connecting the cables to the terminals or to the vehicul's cigarette lighter priză, depending on the configuration.
